Wallbarn Slope Corrector for Paving & Decking Pedestals

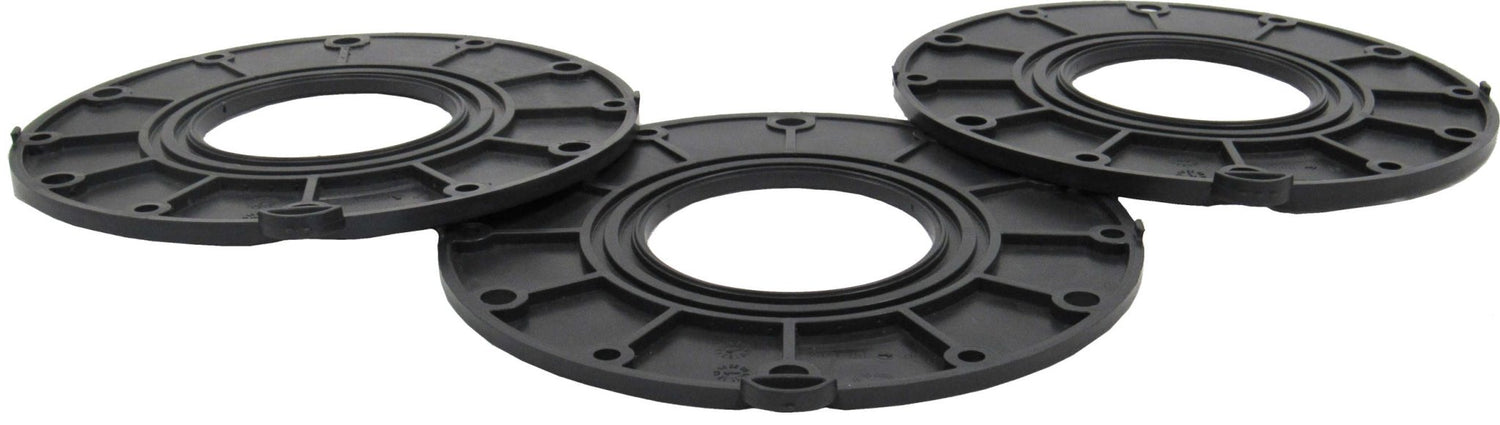

Wallbarn Slope Correctors are purpose designed wedge shaped discs that fit beneath adjustable pedestal baseplates to compensate for roof deck falls and substrate gradients. They provide a simple and reliable solution for correcting slopes in raised decking and paving systems on flat roofs, balconies, terraces and podium decks.

Manufactured by Wallbarn, these circular slope correctors clip securely under the baseplate of compatible adjustable support pads. Two integrated side clips hook firmly over the edge of the baseplate, creating a stable and secure connection that will not shift under load.

By adjusting the slope beneath the pedestal base rather than at the head, the system ensures that the support pad remains upright and the downward force remains vertical. This means the weight of paving slabs, porcelain tiles or decking structures is transferred straight down through the pedestal, improving structural stability and reducing the risk of movement.

Internal ridges around the centre ring help lock the slope corrector to the underside of the smaller baseplate, maintaining alignment and preventing slippage during installation or long term use.

Available in 1 percent, 2 percent and 3 percent fall options, these roof slope correction discs can also be stacked where greater adjustment is required.

Wallbarn Slope Correctors are compatible with the Minipad, Universal, Balance and Mega Balance pedestal ranges, offering a versatile solution across a wide range of raised decking and paving applications.

Features & Benefits:

• Available in 1 percent, 2 percent and 3 percent fall options

• Designed to correct roof deck slopes beneath pedestals

• Secure clip and hook fitting to baseplates

• Maintains vertical load transfer for improved stability

• Helps prevent rocking of slabs and tiles

• Multiple correctors can be stacked together

• Compatible with Minipad, Universal, Balance and Mega Balance pedestals

• Lightweight and easy to install
