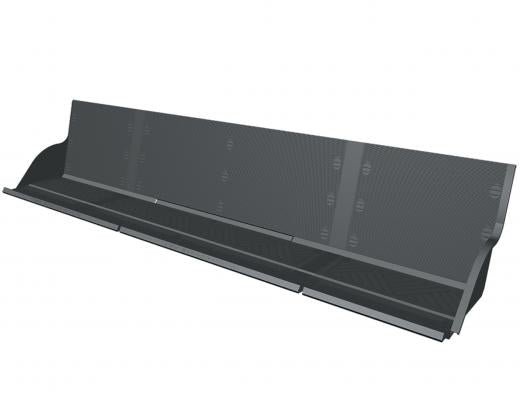

Manthorpe Horizontal Cavity Tray - 900mm

The Manthorpe Horizontal Cavity Tray – 900mm is specifically designed for straight horizontal abutments in new build cavity wall construction, helping to prevent moisture ingress where external masonry meets structural features like roofs or extensions. With integral stop ends and a built-in hook mechanism, each tray offers a full 900mm effective length and removes the need for overlapping, simplifying the installation process.

Two G950 Weep Vents or G951 Peep Weeps should be used in conjunction with this tray, spaced at 450mm centres to meet NHBC compliance, ensuring collected water is safely drained through the outer wall. The front-facing mortar clips can be removed once the mortar sets, forming a 25mm deep slot for secure lead flashing installation with wedges.

Manufactured from rigid black polypropylene, the tray holds its shape during fitting and interlocks easily with other components in the system for reliable, long-term moisture control.

Features and Benefits:

• 900mm cavity tray for horizontal wall abutments in new build properties

• Preformed design sits securely within the wall cavity with no sagging

• Hooked joint and stop ends remove the need to overlap trays

• Use with Manthorpe G950 or G951 weep vents for compliant moisture drainage

• Removable mortar clip allows fast and tidy lead flashing placement

• Connects with other horizontal tray sections for continuous protection

• Helps prevent damp issues in cavity wall construction
