DekDrain Vela A15 Channel Drain Mini Sump Kit

The DekDrain Vela A15 Channel Drain Mini Sump Kit provides an effective way to connect your A15 linear drainage system to underground pipework while helping to trap debris and prevent blockages. Designed for use with the DekDrain Vela A15 Channel Drain range, this compact sump and gully system offers a simple, low-cost solution for managing surface water in patios, driveways and paved areas.

The kit features an 84mm in-line trapped sump with a dip-tube trap and removable leaf guard to collect debris before it enters the drainage pipe. It seals securely to the underside of the channel drain using a rubber gasket and four fixing screws, ensuring a watertight connection. The outlet connector fits standard 110mm underground drainage pipes and can rotate in any direction, adjusting between 0 and 90 degrees for flexible installation.

Practical, reliable and easy to install, this mini sump kit keeps your DekDrain A15 channel drainage system running efficiently and reduces the need for ongoing maintenance.

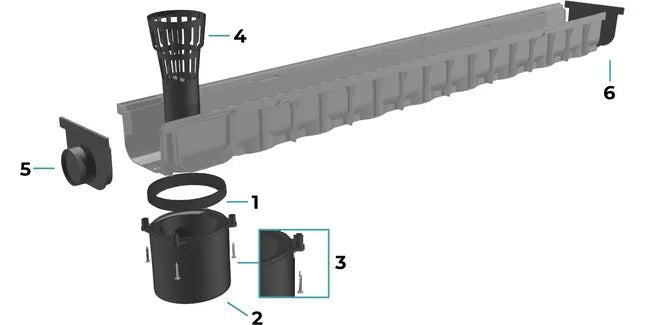

Kit Contents - refer to second image

1. Rubber gasket for watertight sealing

2. Trapped sump/gully with dip-tube trap

3. Four fixing screws

4. Removable leaf guard

5. End cap
6. End cap

Features & Benefits:

• Compatible with the DekDrain Vela A15 Channel Drain range

• 84mm in-line trapped sump with integrated leaf guard

• Connects to standard 110mm underground drainage pipes

• Adjustable 0–90 degree outlet for installation flexibility

• Prevents debris from entering the drainage system

• Simple to fit and maintain for long-term performance
