The Corotherm White Glazing Bar Cap & Base with End Cap is a key component of the Corotherm polycarbonate roofing system, designed to create a secure and watertight joint between two adjoining polycarbonate roof sheets. Suitable for 10mm, 16mm and 25mm Corotherm multiwall sheets, this versatile bar system delivers both structural support and a clean, professional finish.

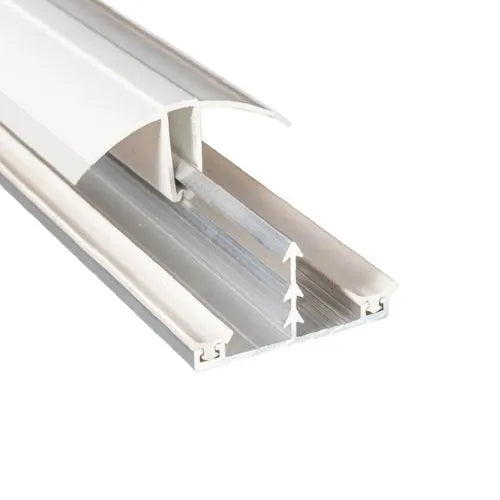

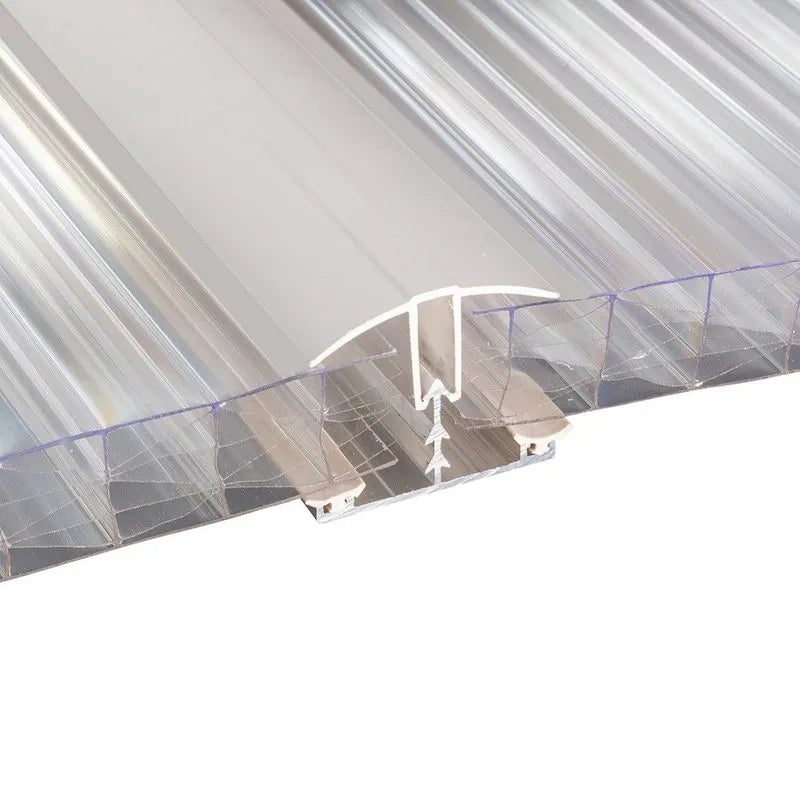

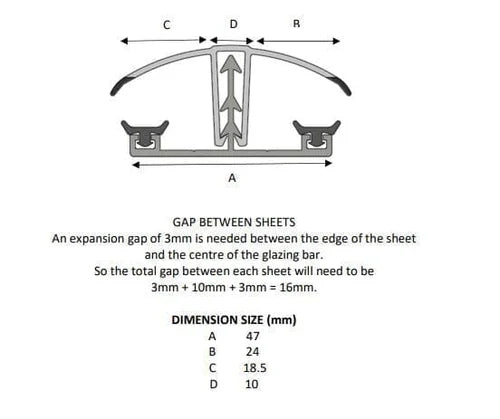

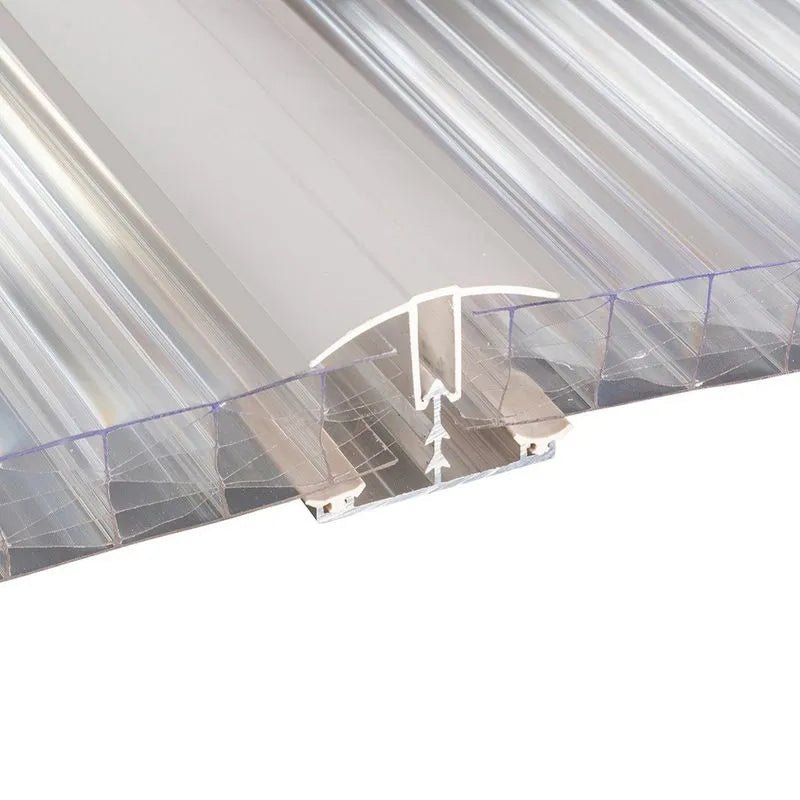

This two-part glazing bar includes a T-shaped base and a push-fit cap. The base is first fixed directly to the rafter, and the polycarbonate sheets are then laid on either side, leaving a 3mm expansion gap to allow for thermal movement. The top cap is simply pressed into place to complete the joint, forming a tight seal that prevents water ingress and reinforces the roof structure.
Each glazing bar comes with a matching white end cap, designed for the exposed end of the bar. The opposite end is intended to terminate at a wall or structural surface, so an additional cap is not required.
These rafter-supported bars are designed specifically for side-to-side joins only, not for joining sheets end-to-end. They are ideal for use in conservatories, carports, lean-tos, verandas, garden rooms and other polycarbonate roofing systems where durability and appearance are equally important.
Available in a range of colours and lengths, this glazing bar set is quick to install and provides a neat, long-lasting finish that blends seamlessly with white framing systems.
Features & Benefits:
- Joins polycarbonate sheets side by side with a tight, watertight seal
- Compatible with 10mm, 16mm and 25mm Corotherm roofing sheets
- Includes white T-bar base, snap-fit cap and end cap
- Built-in rubber gaskets for secure sealing and weather protection
- Easy to install with a clean, low-profile finish
- Enhances structural integrity across the joint
- Available in various colours and lengths to match your project
- Ideal for rafter-supported glazing systems
- Designed for domestic and commercial roofing installations
-
brandCorotherm
-
colourWhite
-
length3m, 4m, 6m
-
thickness10mm, 16mm, 25mm
