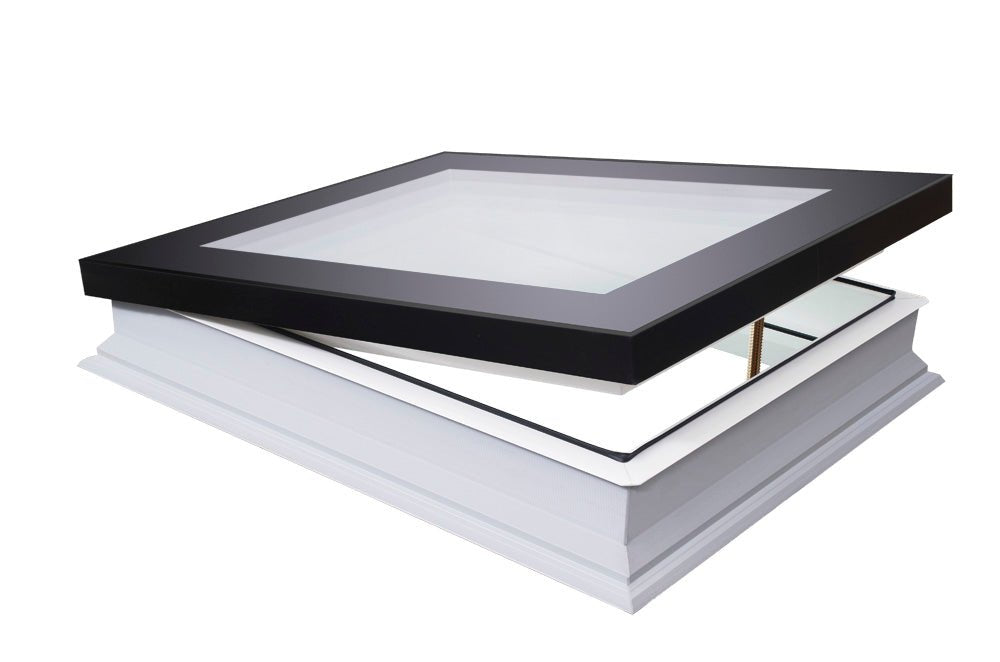

FAKRO DMF-D Manual Opening Flat Roof Window

The FAKRO DMF-D Manual Opening Flat Roof Window is designed for flat roof applications where both natural daylight and controllable ventilation are required. Ideal for residential extensions, kitchens, bathrooms, stairwells, and light commercial spaces, this manually operated flat roof rooflight offers dependable performance with a clean, modern finish.

To suit different energy performance targets and Building Regulations requirements, the DMF-D flat roof window is available with a choice of advanced glazing options. These include U6 triple glazed highly energy efficient glazing with a U-value of 0.7 W/m²K, U8 quadruple glazed passive glazing achieving an ultra-low U-value of 0.64 W/m²K, and U6 Secure triple glazing, which maintains a U-value of 0.7 W/m²K while providing enhanced security. This flexibility allows you to specify the most suitable option for your project without compromising on thermal efficiency.

Manual operation enables simple and reliable ventilation, allowing fresh air to be introduced whenever needed without electrical connections. The window is supplied complete with a 150mm insulated UPVC kerb upstand, providing a robust waterproofing termination height while helping to reduce heat loss and cold bridging at roof level.

The glazing configuration is engineered for safety, comfort, and durability. The external pane is manufactured from 6mm toughened glass to withstand weather exposure, while the internal pane uses laminated P2A class anti-burglary glass, improving security and occupant protection. Acoustic performance is also enhanced, with effective sound reduction to help minimise external noise intrusion.

Internally, the multi-chamber UPVC upstand is finished in RAL 9010 white, creating a bright, neutral appearance that complements modern interiors. Externally, the step and profiles are finished in RAL 9005 black, with a subtle darkened glazing edge that delivers a refined, contemporary look when viewed from above.

Designed for installation on flat roofs with pitches between 2 and 15 degrees, the FAKRO DMF-D manual opening flat roof window offers a practical, energy efficient, and visually appealing solution for a wide range of flat roof glazing applications.

Features & Benefits:

• Manually opening flat roof window providing controllable ventilation

• Choice of triple or quadruple glazing to suit energy efficiency requirements

• U6 triple glazed option achieving a U-value of 0.7 W/m²K

• U8 quadruple glazed passive glazing with ultra-low U-value of 0.64 W/m²K

• U6 Secure triple glazing option for enhanced security performance

• Supplied with a 150mm insulated UPVC kerb upstand for reliable waterproofing

• 6mm toughened external glass for durability and weather resistance

• Laminated P2A class internal glass for improved safety and anti-burglary protection

• Acoustic performance helping to reduce external noise levels

• Multi-chamber UPVC upstand finished in RAL 9010 white

• External profiles finished in RAL 9005 black with darkened glazing edge

• Suitable for flat roof pitches between 2 and 15 degrees
