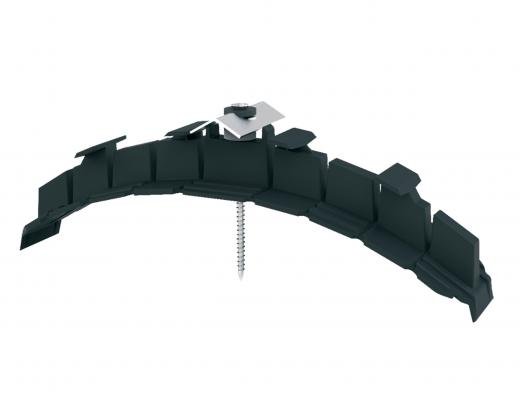

Manthorpe Roll Out Dry Ridge Union - Pack of 12

The Manthorpe Roll Out Dry Ridge Union – Pack of 12 is designed to provide a secure, weatherproof connection between adjoining ridge or hip tiles in a dry fix roofing system. Each union slides onto the end of a tile, flexing to match its shape, before connecting seamlessly to the next tile along the ridge or hip run.

Once positioned, the union is fastened using the included 4-inch screw assembly, complete with a stainless steel clamp plate, neoprene sealing washer, and foam spacer washer. This combination ensures a tight, durable fit that prevents water ingress and securely pins the tiles to the ridge batten.

Suitable for both round and angled concrete or clay ridge tiles up to 20mm thick, these unions offer a strong, mechanically fixed solution for modern dry ridge and dry hip systems. They are available separately for repairs and replacements or as part of the complete Manthorpe Dry Ridge System, which comes with all components needed for a full installation.

Features & Benefits:

• Flexible design fits both round and angled ridge or hip tiles

• Compatible with concrete and clay tiles up to 20mm thick

• 4-inch screw provides a secure fixing into the ridge batten

• Stainless steel clamp plate holds tiles firmly in place

• Neoprene washer creates a watertight seal around the screw

• Foam spacer washer ensures a snug fit to the tile surface

• Can be purchased individually or as part of a complete dry ridge kit
