Manthorpe Roll Out Dry Ridge System - 6m

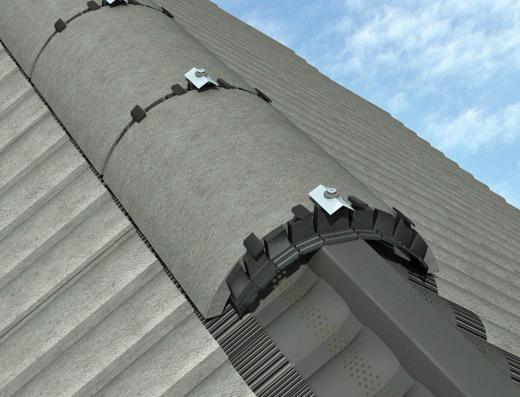

The Manthorpe Roll Out Dry Ridge System – 6m is a mechanically fixed dry ridge kit designed to provide a secure, mortar-free method for fixing ridge tiles to pitched roofs. Ideal for both concrete round and angled ridge tiles, the system offers reliable protection against wind uplift and rain penetration.

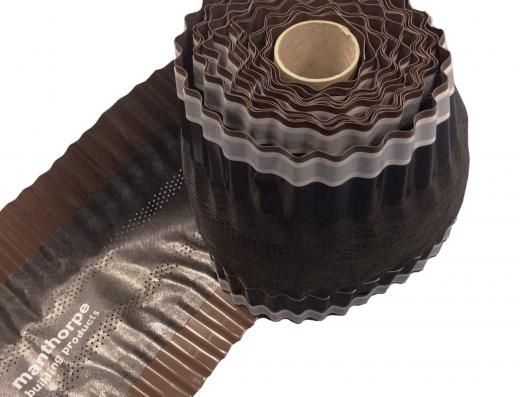

With an integrated vent roll providing 5,000mm² per metre of continuous ventilation, the system allows for consistent airflow into the roof space, equivalent to a 5mm ventilation gap. This makes it a great choice for dry fix ridge ventilation on duo-pitch roofs with pitches between 15 and 45 degrees.

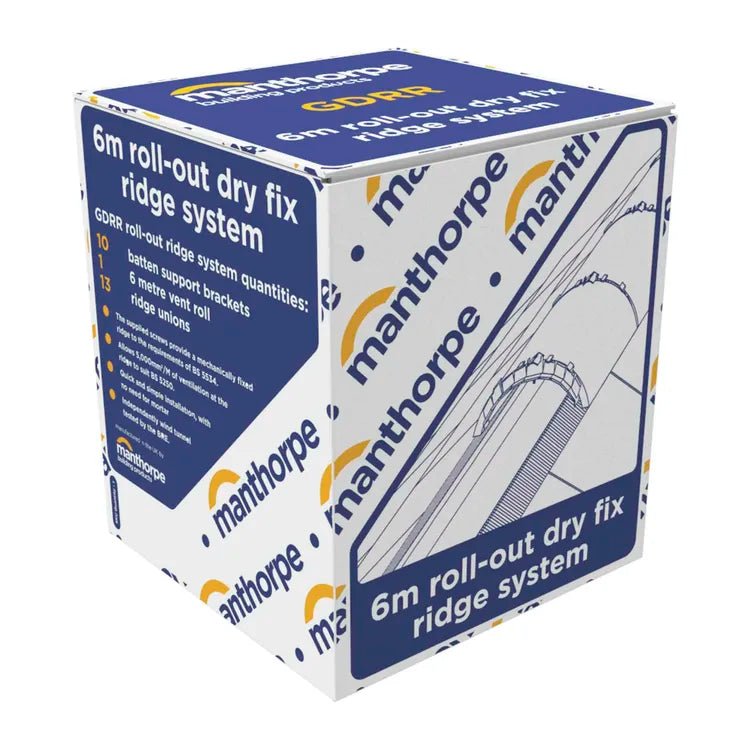

Each kit contains all necessary components to complete a 6 metre ridge run (excluding ridge tiles), including ridge unions, clamps, and ventilated roll. Compatible with most slate, flat concrete, and profiled roof tiles, this kit is easy to install in all weather conditions, with no specialist tools required.

Available in Black or Dark Brown, this ridge system works perfectly with Manthorpe Ridge End Caps and both SmartVerge Linear and Standard systems. Independently wind tested by the BRE, the system is fully compliant with BS 8612 standards for dry fix roofing systems.

Features & Benefits:

• Mortar-free dry ridge system for fast, clean installation

• Provides 5,000mm²/m of continuous ridge ventilation

• Mechanically fixes ridge tiles to prevent wind uplift

• Compatible with most concrete round and angled ridge tiles

• Suitable for use with slate, flat, and profiled roof tiles

• One box contains components for a 6 metre ridge run

• Installs easily in any weather, no special tools required

• Works with SmartVerge systems and Ridge End Caps

• Tested by BRE and fully BS 8612 compliant
