Alusthetic Triple Sealed Shallow Aluminium Recessed Access Manhole Cover & Frame - 300mm x 300mm

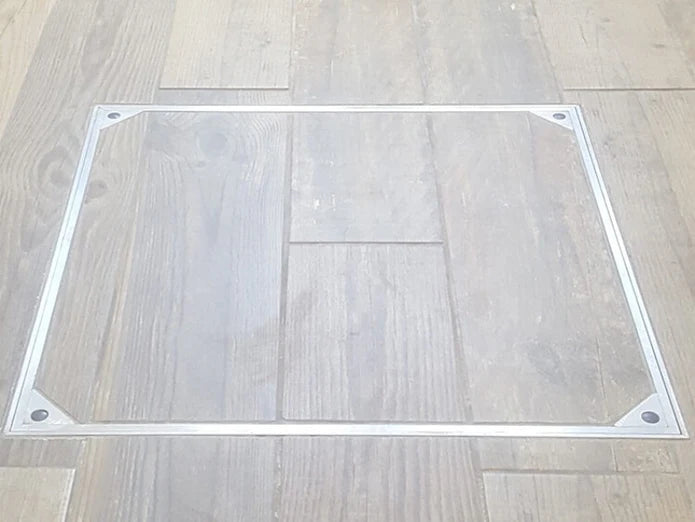

The Alusthetic Triple Sealed Shallow Aluminium Recessed Access Manhole Cover & Frame - 300mm x 300mm is designed for projects where both a slim profile and maximum protection are required. With a clear opening of 300mm x 300mm and an overall size of 390mm x 390mm, this model offers reliable access while maintaining a discreet appearance in tiled or paved areas. Its overall depth of just 40mm with a 21mm tray depth makes it especially well-suited to porcelain or indoor tile installations.

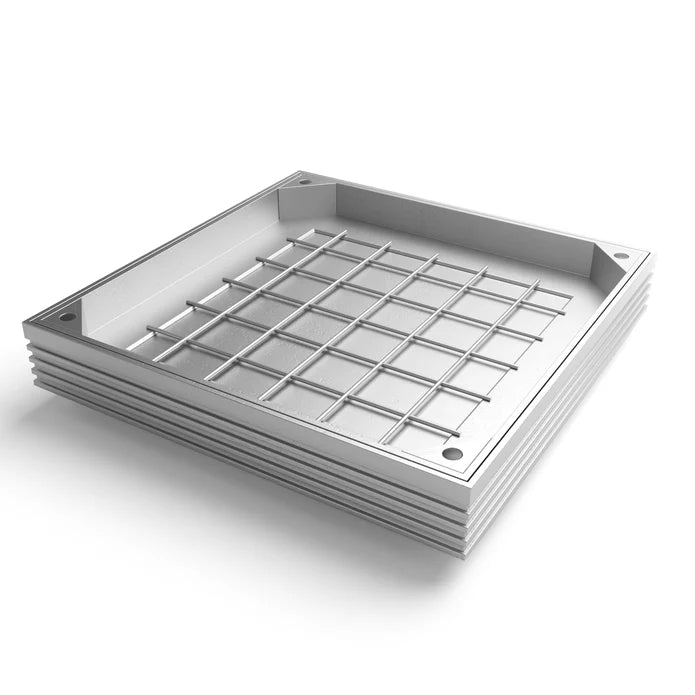

Manufactured from high-grade extruded aluminium, the tray includes reinforced mesh to secure the infill material, while a 3mm galvanised steel bottom plate provides additional rigidity. Tested to EN124 standards, the unit is rated up to A15 pedestrian load class, making it suitable for both residential and light-duty public environments.

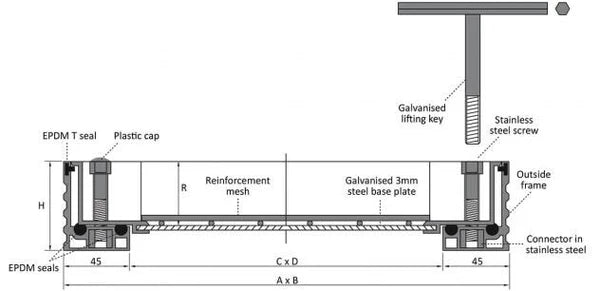

The triple sealing system combines two EPDM gaskets with an additional T-rubber seal, creating superior resistance against odours and water ingress. Each of the four lifting points features a locking bolt to secure the tray tightly to the frame, with two lifting keys supplied for straightforward and safe access. This innovative design ensures long-term performance in both interior and exterior settings.

Features & Benefits:

• 300mm x 300mm clear opening with overall size 390mm x 390mm

• Slim 40mm overall depth and 21mm tray depth for shallow installations

• Triple sealed design with dual EPDM gaskets and T-rubber insert

• Locking bolts at all four lifting points provide extra security

• Extruded aluminium tray with reinforced mesh and steel bottom plate

• Rated to A15 pedestrian load and tested to EN124 standards

• Supplied with two lifting keys for safe and easy access
