Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame - 900mm x 900mm

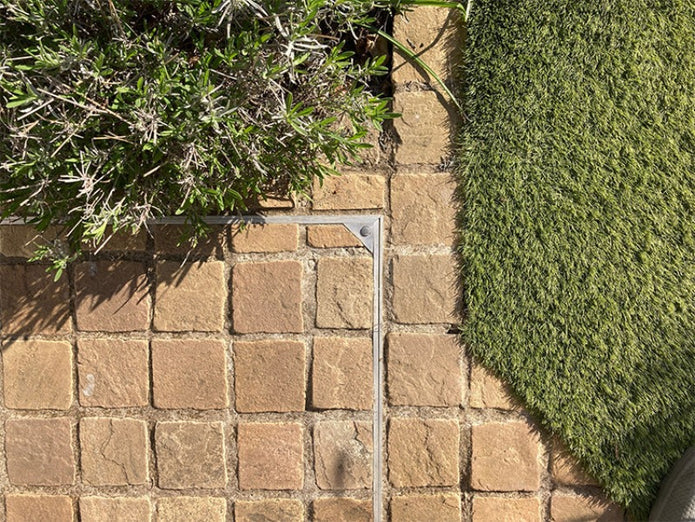

The Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame – 900mm x 900mm is designed for large inspection chambers where strength, security, and a seamless surface finish are vital. With a clear opening of 900mm x 900mm and an overall size of 990mm x 990mm, this recessed cover offers generous access while ensuring it blends discreetly into tiled, paved, or slabbed surroundings. Its 60mm overall depth and 41mm tray depth allow for flexible infill options, creating a smooth and professional recessed finish.

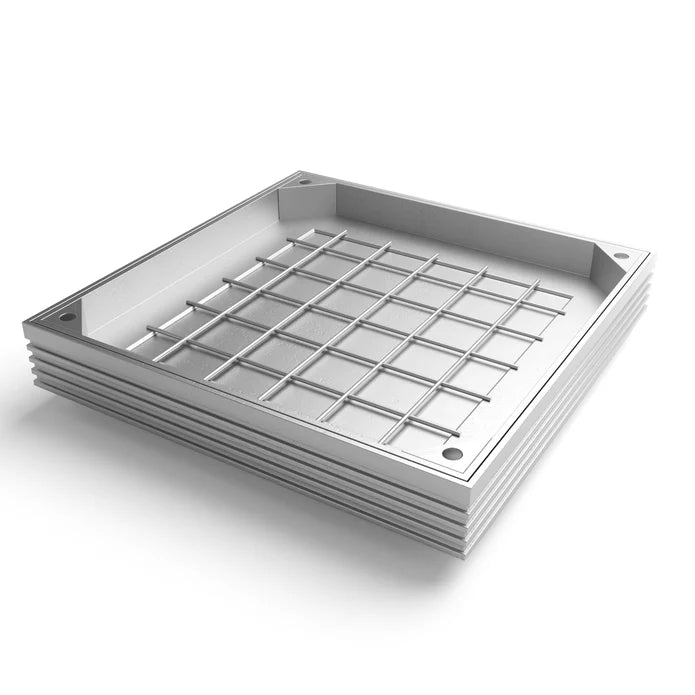

Crafted from extruded aluminium with integrated mesh reinforcement, the tray is lightweight yet capable of supporting pedestrian use with ease. A galvanised steel base plate enhances rigidity, ensuring the cover maintains long-term stability in residential and landscaped applications. Tested to EN124 standards and rated to A15 pedestrian load class, it delivers performance and reliability in demanding conditions.

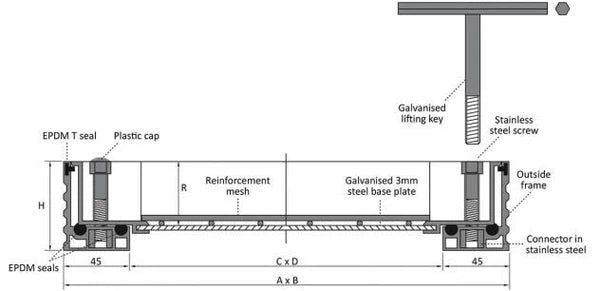

The triple sealing system combines two EPDM gaskets with a T-rubber insert, forming a tight seal that prevents odours and water ingress. Each lifting point is fitted with a locking bolt, keeping the tray securely fastened to the frame. Two lifting keys are provided, allowing safe and straightforward removal whenever access is required.

Features & Benefits:

• 900mm x 900mm clear opening, overall size 990mm x 990mm

• 60mm overall depth with 41mm tray depth for recessed installations

• Extruded aluminium tray with reinforced mesh and galvanised steel base plate

• Triple sealed with EPDM gaskets and T-rubber insert for superior odour and water resistance

• Locking bolts at four lifting points keep the tray tightly secured

• A15 pedestrian load rated and tested to EN124 standards

• Suitable for large residential or landscaped paved and tiled areas

• Supplied with two lifting keys for easy and safe access
