Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame - 900mm x 600mm

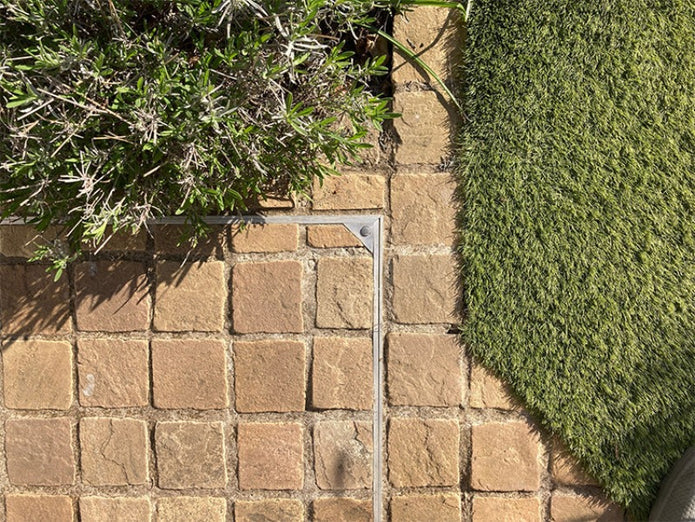

The Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame – 900mm x 600mm is designed for larger inspection chambers where secure access and a discreet finish are essential. Offering a clear opening of 900mm x 600mm with an overall size of 990mm x 690mm, it blends seamlessly with paving, porcelain tiles, or slabs, making it suitable for both indoor and outdoor use. Its 60mm overall depth with a 41mm tray depth allows for a wide range of infill materials while ensuring a flush, professional finish.

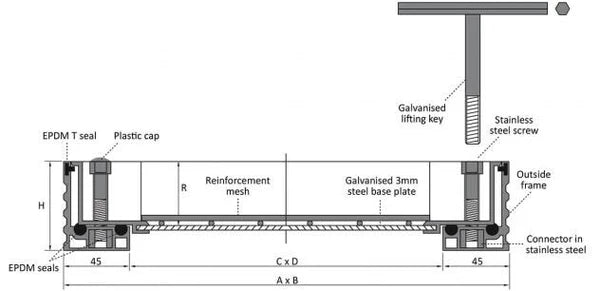

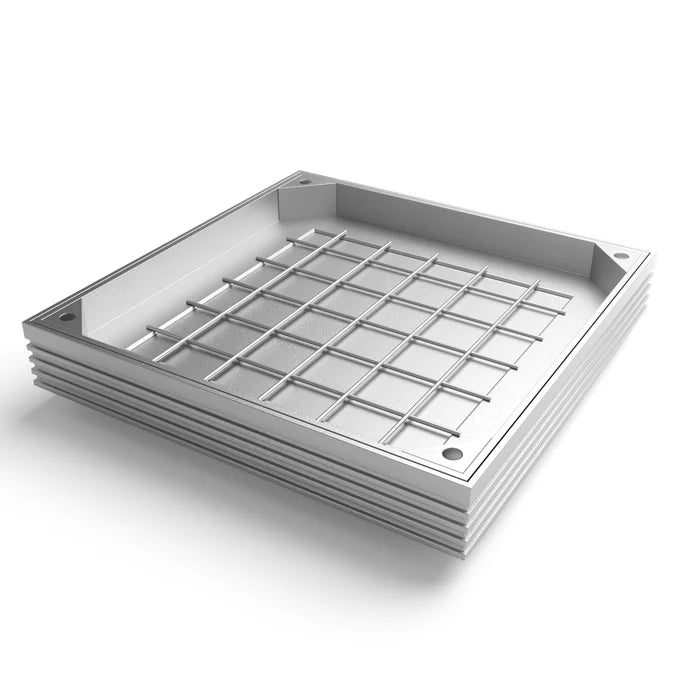

Made from extruded aluminium with integrated mesh reinforcement, the tray combines lightweight handling with robust performance. A galvanised steel base plate adds strength and rigidity, giving the cover long-term stability. Tested to EN124 and rated A15 pedestrian load, it is a reliable solution for residential and landscaped environments.

The triple sealing system incorporates two EPDM gaskets along with a T-rubber insert, forming an effective barrier against water and unpleasant odours. Each of the four lifting points is fitted with a locking bolt for extra security, while the supplied lifting keys make the cover quick and safe to remove when access is required.

Features & Benefits:

• 900mm x 600mm clear opening, overall size 990mm x 690mm

• 60mm overall depth with 41mm tray depth for recessed installation

• Lightweight extruded aluminium tray with reinforced mesh design

• Galvanised steel base plate provides added strength and rigidity

• Triple sealed with dual EPDM gaskets and T-rubber for superior odour and water resistance

• Locking bolts at every lifting point keep the tray securely fixed

• Tested to EN124 and rated to A15 pedestrian load class

• Two lifting keys included for simple and safe chamber access
