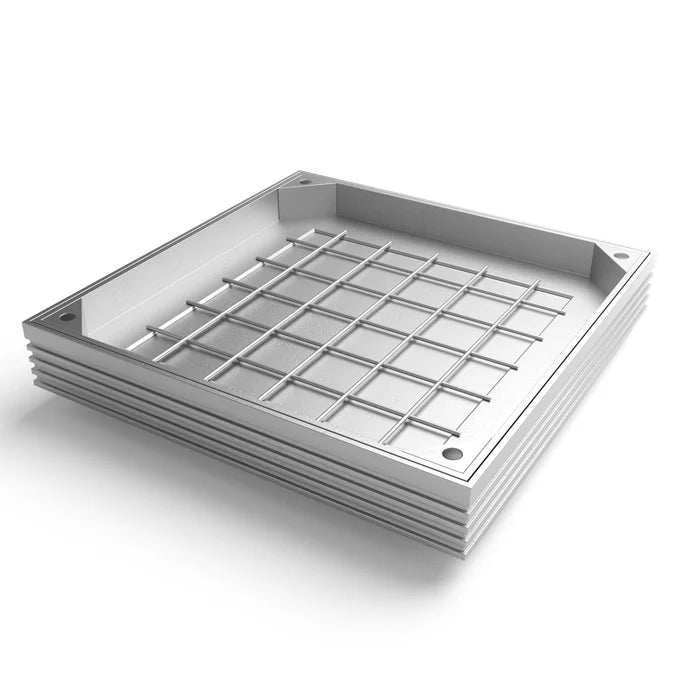

Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame - 750mm x 750mm

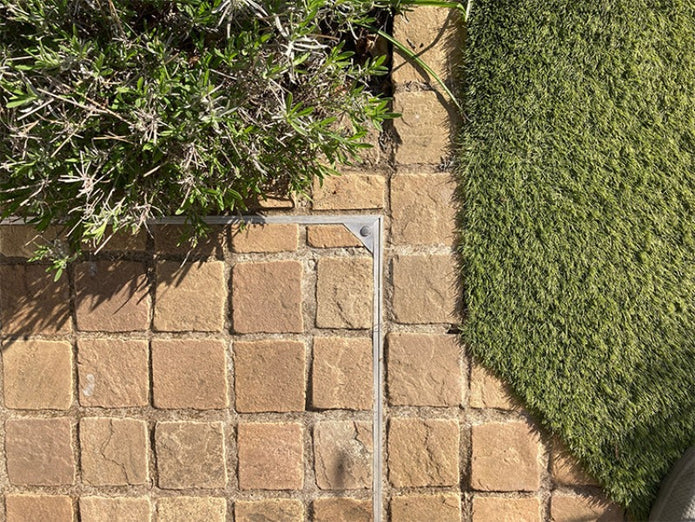

The Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame – 750mm x 750mm is a high-quality solution for projects where strength, security, and a refined finish are essential. Designed with a clear opening of 750mm x 750mm and an overall size of 840mm x 840mm, this cover provides generous access while blending seamlessly into paved, tiled, or slabbed areas. Its 60mm overall depth and 41mm tray depth allow a wide variety of infill materials to be installed, making it suitable for both internal and external applications.

Manufactured from extruded aluminium with reinforced mesh, the tray is lightweight yet durable, while a galvanised steel base plate provides added rigidity. Certified to EN124 standards and rated A15 for pedestrian load, this recessed access cover ensures long-term stability in residential and landscaped environments.

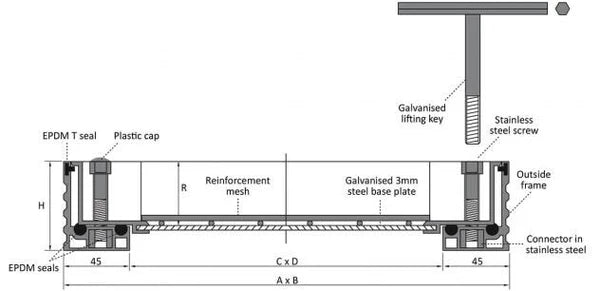

The triple sealing arrangement includes two EPDM gaskets and a T-rubber insert, which together create a highly effective barrier against water and odours. Each lifting point is fitted with a locking bolt to secure the tray tightly to the frame, ensuring dependable performance. Two lifting keys are provided, making removal safe and efficient whenever access is needed.

Features & Benefits:

• 750mm x 750mm clear opening, overall size 840mm x 840mm

• 60mm overall depth with 41mm tray depth for seamless recessed installation

• Extruded aluminium tray with reinforced mesh for lightweight strength

• Galvanised steel base plate provides additional rigidity and durability

• Triple sealed with EPDM gaskets and T-rubber for odour and water resistance

• Locking bolts at all lifting points secure tray firmly to frame

• Tested to EN124 and rated to A15 pedestrian load

• Supplied with two lifting keys for safe, easy access
