Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame - 200mm x 200mm

The Alusthetic Triple Sealed Aluminium Recessed Access Manhole Cover & Frame - 200mm x 200mm is designed for situations where a small but reliable recessed cover is needed. Offering a clear opening of 200mm x 200mm with an overall size of 290mm x 290mm, it provides neat and secure access to smaller chambers or service points. With a total depth of 60mm and a 41mm tray depth, it can be infilled with materials such as tiles, porcelain, wooden flooring, or paving flags for a discreet finish.

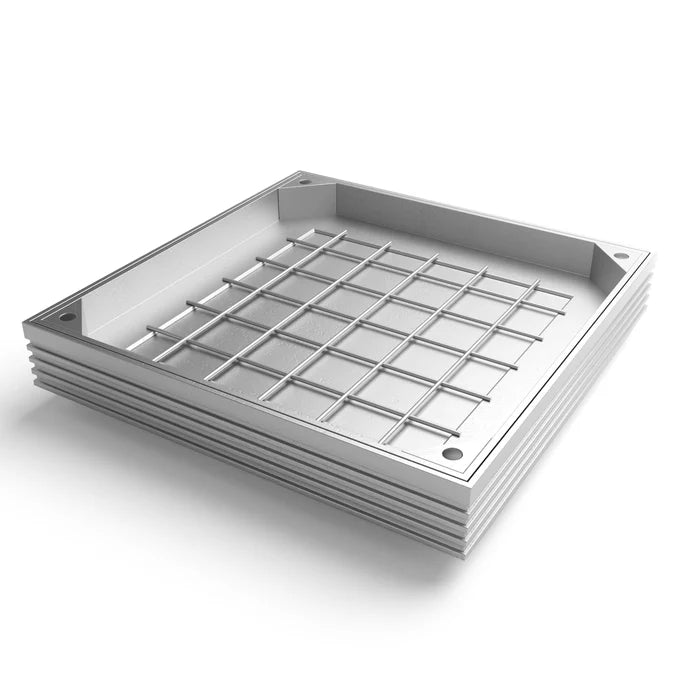

Built from extruded aluminium and reinforced with mesh, the tray is lightweight yet durable, while a galvanised steel base plate adds additional strength. Tested to EN124 and rated to A15 pedestrian load, this recessed access cover is suitable for both interior applications and light-duty exterior projects.

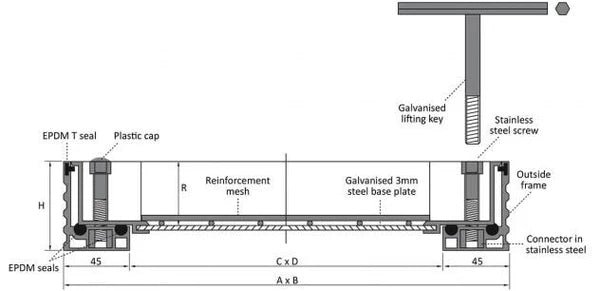

The triple seal arrangement combines dual EPDM gaskets with a T-rubber insert, creating a secure barrier against water and odours. Each lifting point is fitted with a locking bolt, ensuring the tray remains tightly secured to the frame at all times. Two lifting keys are provided, making it quick and safe to remove when access is required.

Features & Benefits:

• Clear opening 200mm x 200mm, overall size 290mm x 290mm

• 60mm overall depth with 41mm tray depth for infill versatility

• Lightweight extruded aluminium tray with reinforced mesh design

• Galvanised steel base plate for extra rigidity and stability

• Triple sealed with EPDM and T-rubber for water and odour protection

• Four locking bolts hold the tray securely to the frame

• A15 pedestrian load rated, tested to EN124 standards

• Supplied with two lifting keys for simple, safe removal
